StringBuddy® Scanner
Smaller defects, not only need better inspection techniques, but also better representation of the captured data. Instead of statistical measurements, a complete scan of the component under inspection is required. This usually requires data to be captured at all positions, such that a 100% inspection is achieved.
From USD$765
Simple Inspection Solution
Inspections requiring such coverage, usually make use of expensive robots, crawlers or manipulators. In the case of site work or rope access work, such large equipment is costly, impractical and time consuming to setup. Instead of using mechanised systems, ScanBuddy now offer the StringBuddy® Matrix.

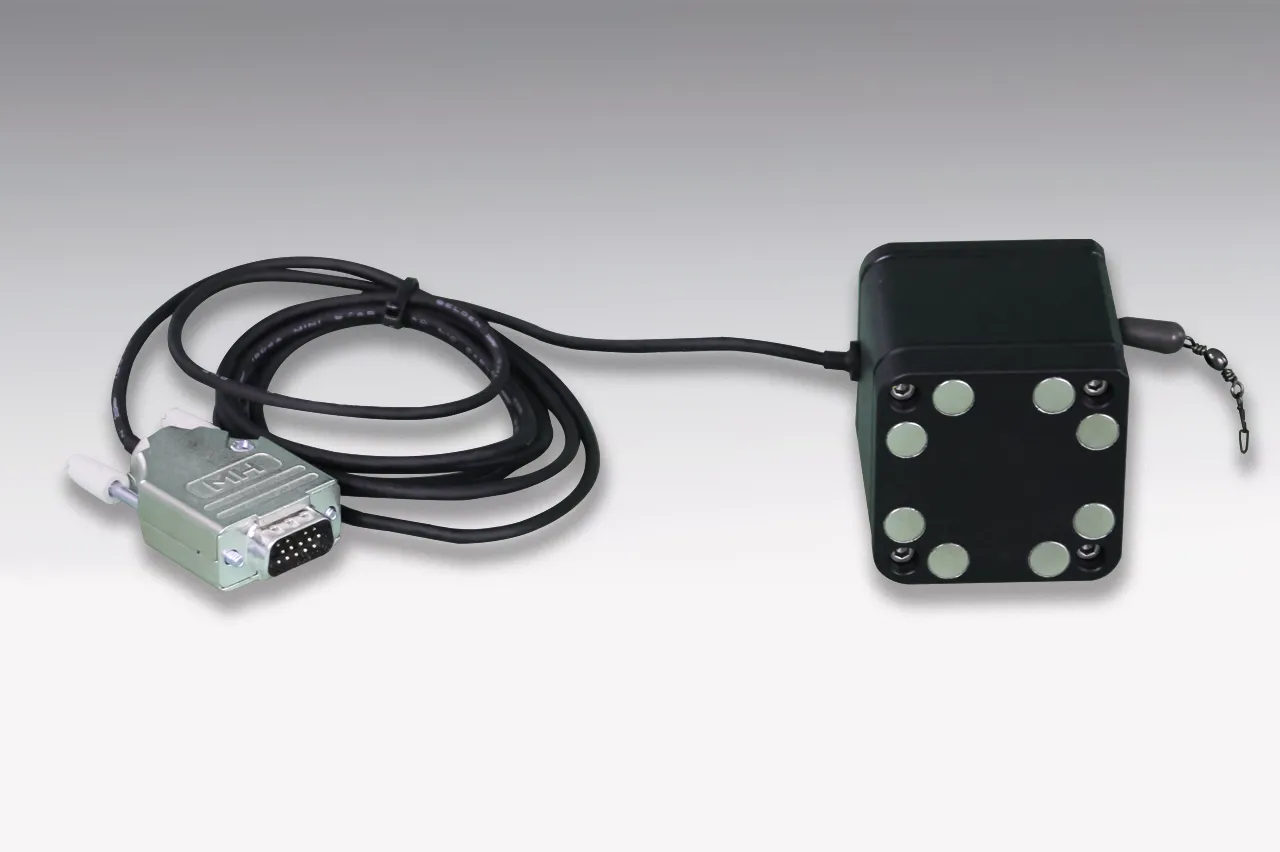

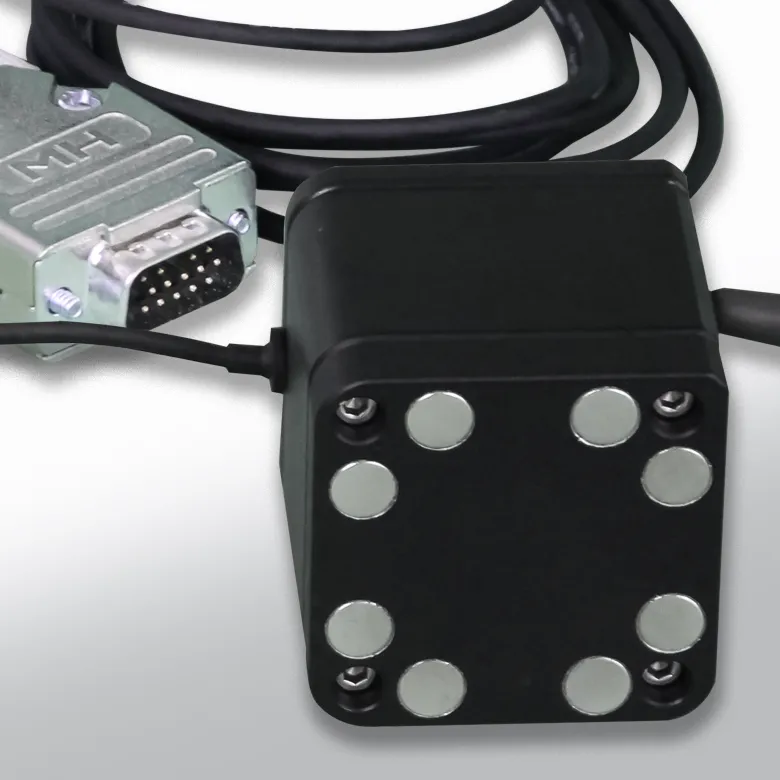

This encoder is very portable, consisting of a small encoder. The system is therefore easy to transport in hand luggage, and easy to manoeuvre during inspections.
Easy Operation
The StringBuddy is connected to your existing NDT equipment, such as a phased array set, UT set, eddy current set, or any equipment that can be used with encoders. The encoders are then simply clamped onto the component under inspection, using magnetic feet or suction cups (optional). The probe used for the inspection is then calibrated and connected to the end of the wire encoders. The NDT equipment then receives the position feedback as if it were connected to the encoders, thus simulating a robot, manipulator, or crawler. Data is captured in one-line scans.
